Weighting and additional weights
highest level of safety for soccer goals
The weighting for soccer goals by additional weights is a very important issue regarding the tilt safety of soccer goals. Time and again, unsecured soccer goals topple over and cause (sometimes serious) injuries to players, as was shown, for example, by the much-discussed goal accident in Augustdorf. But that does not have to be! With the artec anti-tilt device we offer a system that reliably prevents the soccer goals from tipping over by means of additional weights and at the same time enables convenient movement of the soccer goals due to the integrated wheels!
Weighting by additional weights
for all kinds of goals

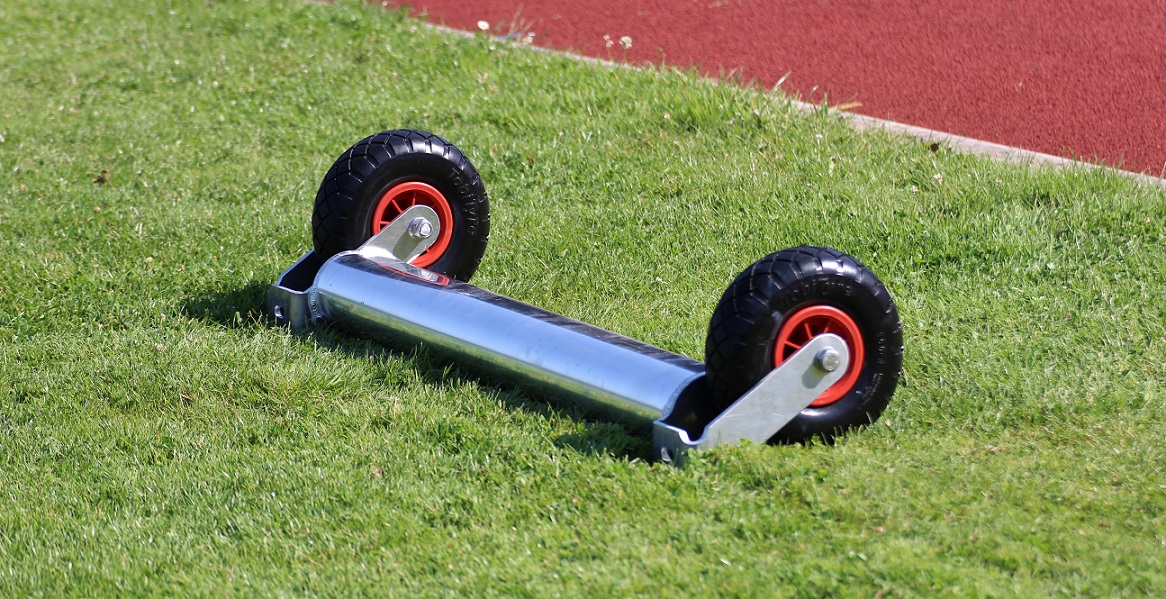

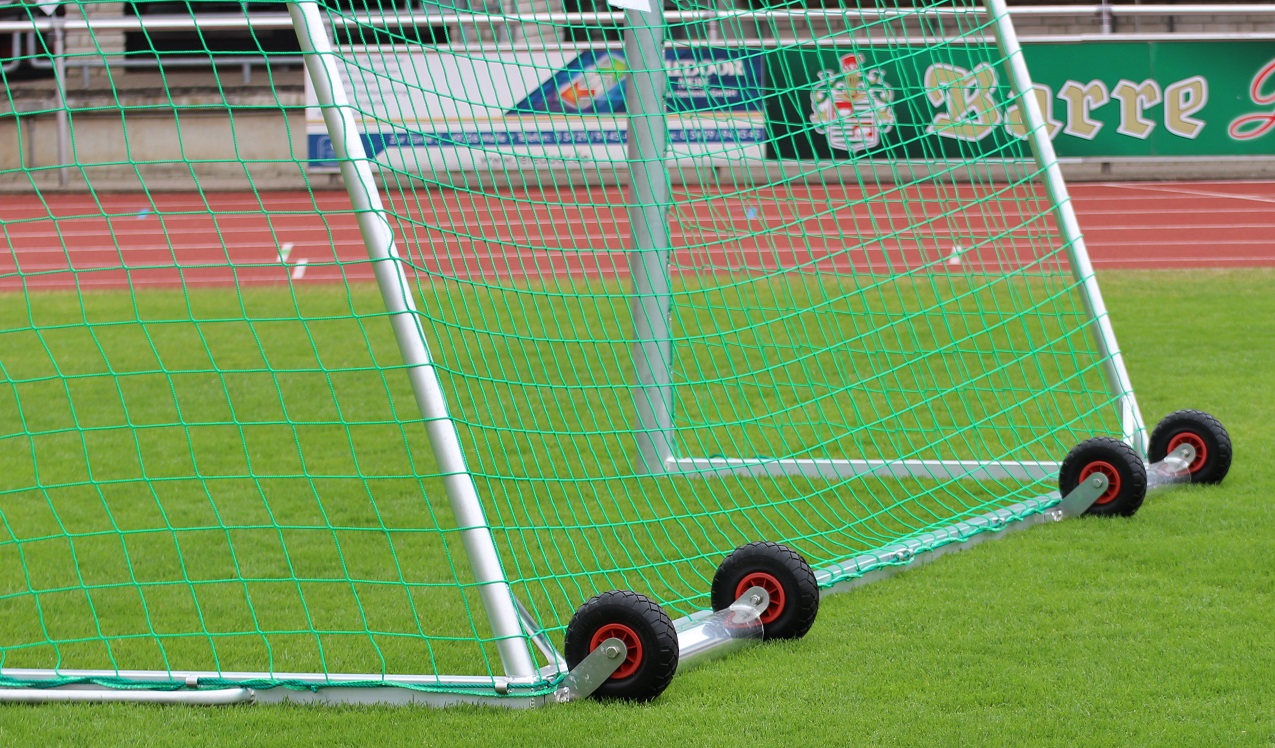

The anti-tilt device from artec Sportgeräte is an optimal solution for the safety of mobile soccer goals. The weighting of the goals is created by means of additional weights attached to the ground frame. The additional weights are embedded in an aluminum profile as a steel core filling and each weight unit is equipped with two foamed (puncture-proof) pneumatic wheels. The perfectly matched ground clearance of the additional weights or the anti-tilt unit enables optimal traversability of the soccer goals on the sports field due to the excellent running properties. In contrast to many other systems, it is also possible to drive through troughs, for example, without any problems. The artec anti-tilt device is also excellently suited for retrofitting existing soccer goals from other manufacturers, as a major order placed with artec by the city of Cologne has shown. There, more than 500 mobile soccer goals in the entire city area were retrofitted with the artec anti-tilt system across all manufacturers in 2017. A great proof of quality for our anti-tilt system!
The anti-tilt of soccer goals
Observe goal size and goal projection
For the safety of soccer goals, the technical requirements are essentially defined by the regulations of the municipal accident associations and DIN/EN 748. There, it is specified that mobile soccer goals must be equipped either by weighting them with additional weights ( anti-tilt devices) or with ground anchors (e.g. ground sockets, anchors, etc.) in order to ensure a sufficiently safe stability. But what additional weight is actually needed for different goals to safely prevent them from tipping over?
It is important to know that the required weighting by additional weights depends on the type of goal as well as the rear projection. The following physical principle applies: the smaller the rear projection, the heavier the additional weights for weighting the soccer goals! For example, a free-standing Soccer goal with a lower projection of 1.0 m, an additional weight of 200 kg is required to safely prevent tipping and to safely guarantee the stability of 1.100 N prescribed by DIN/EN 748 for free-standing soccer goals! In contrast, an additional weight of 100 kg is already sufficient for a lower projection of 2.0 m. For a better overview of the necessary additional weights for various goals and projections, we have compiled the following table:
The artec® anti-tilt device
Of course, we will also be happy to advise you individually and according to your needs if you have further questions about securing soccer goals against tipping with additional weights. You can reach our anti-tilt experts at the contact details below. Do not hesitate and feel free to contact us! We can install our anti-tilt devices on all types of goals. Amongst others, these include:
- Mobile training goal with oval base frame, movable according to width and length
- Mobile training goal with rectangular base frame, movable according to the width and length
- Mini goals and recreational goals in all popular designs
- Mobile youth goalswith oval base frame, movable according to the width and length
- Mobile youth goals with rectangular base frame, movable according to the width and length
- Field hockey goals in various designs
- Handball goal for outdoor use
In order to further clarify the topic of anti-tilt devices and additional weights for mobile soccer goals, we repeatedly give lectures at public events, seminars and workshops. For example, every year we educate many club representatives and coaches about the anti-tilt safety of soccer goals as part of artificial turf seminars held by the Football and Athletics Association of Westphalia (FLVW) or the Central Rhine Football Association (FVM). In addition to the technical designs of anti-tilt systems, the relevant rules for the design and manufacture of soccer goals – such as DIN EN 748 – are also addressed. The lively discussions and queries at the events show that there is still a great need for information and education, which we are of course happy to continue to meet. Our aim as a manufacturer of soccer goals is, on the one hand, to increase the tilt safety for soccer goals in the long term and, on the other hand, to minimize potentially existing liability risks for club managers and volunteer coaches and trainers.
From pros for pros
The safety of players and officials is very close to artec’s heart, so we are constantly developing and optimizing our anti-tilt devices. Through this we offer our customers optimal solutions when it comes to safety as well as optimal handling of anti-tilt soccer goals. We design and manufacture our additional weights for weighting the soccer goals ourselves at our company location in Melle. This ensures that our customers always receive the highest product quality and a high degree of flexibility. Why not see for yourself and get in touch with our experts? Our technically skilled and competent team is ready to help with advice and action if you want to purchase the right weighting with additional weights for your soccer goals. You can reach us at 05422 / 9470-0 or the mail address info@artec-sportgeraete.de. We look forward to hearing from you and will be very happy to make your sports facility even safer!
